4-Person Cross L-Shaped LINAK DL6 Height Adjustable Workstation | FortuneRise
4-Person Cross L-Shaped LINAK DL6 Height Adjustable Workstation | FortuneRise 4-Person Cross L-Shaped LINAK DL6 Height Adjustable Workstation | FortuneRise

4-Person Cross L-Shaped LINAK DL6 Height Adjustable Workstation | FortuneRise

Product Attributes :

FortuneRise 4-person cross L-shaped workstation features cross enclosed layout with each station equipped with dual 1200*600 desktops, fabric partition and full LINAK DL6 welded lifting system. Every position owns exclusive DPG1C controller & anti-collision sensor, matched integrated cable management, adjustable height 630–1280mm, ideal for central open office team areas.

Product Description

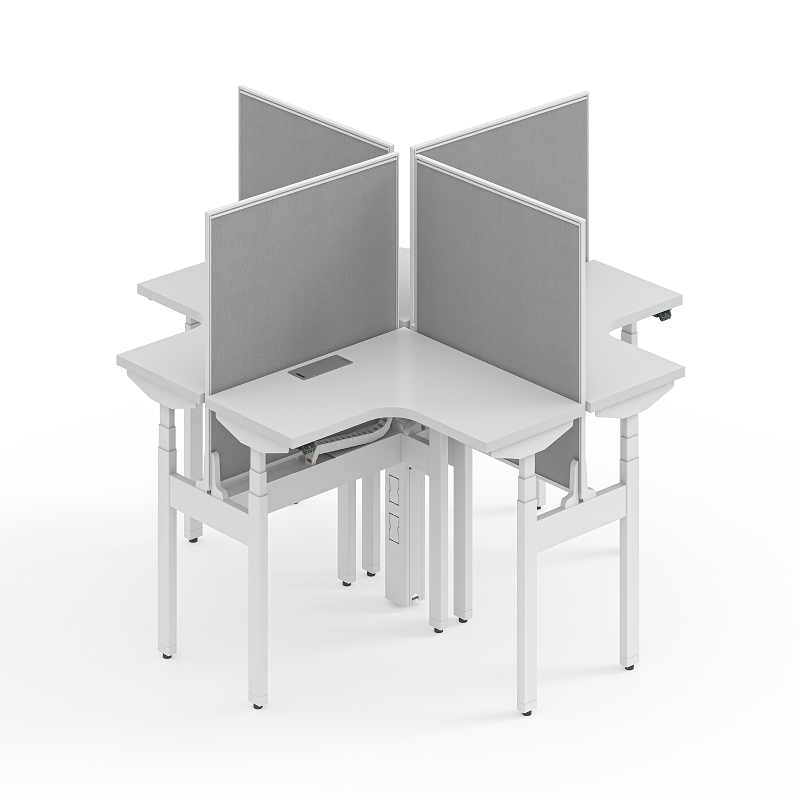

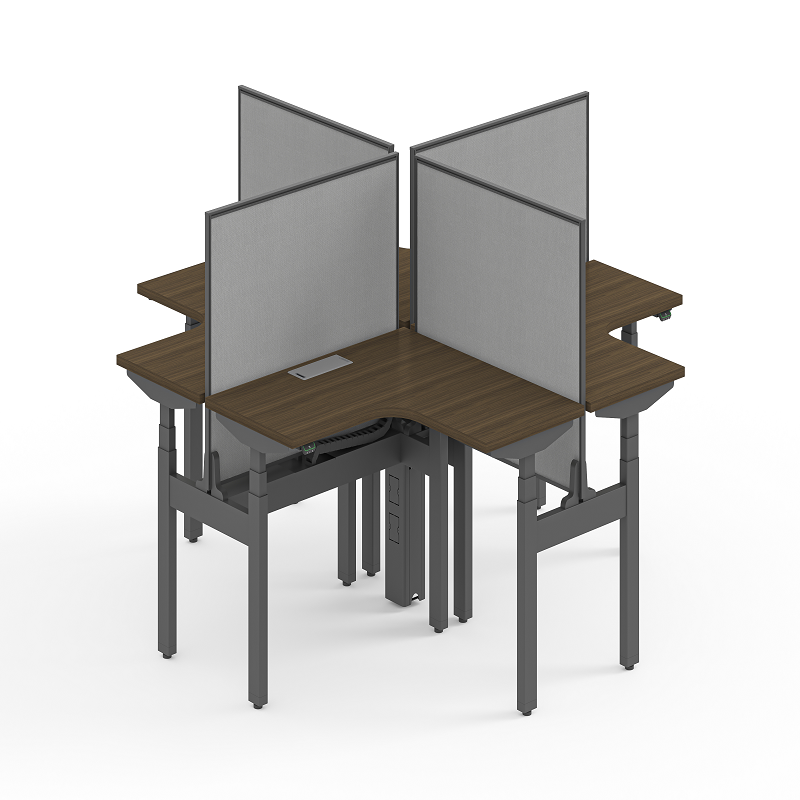

This FortuneRise four-person cross L-shaped workstation adopts enclosed cross layout, each independent work station assembled with dual 1200W*600 rectangular desktops to form an L-shaped working surface, maximizing desktop space for each employee.

It is equipped with 12pcs genuine Danish LINAK DL6 welded 3-stage lifting columns, matched with 4 sets independent lifting assemblies, each group equipped with CBD6S 3-channel synchronous control box. All 4 stations support separate height adjustment from 630mm to 1280mm without interfering adjacent positions, freely switching between seated work and standing brainstorming.

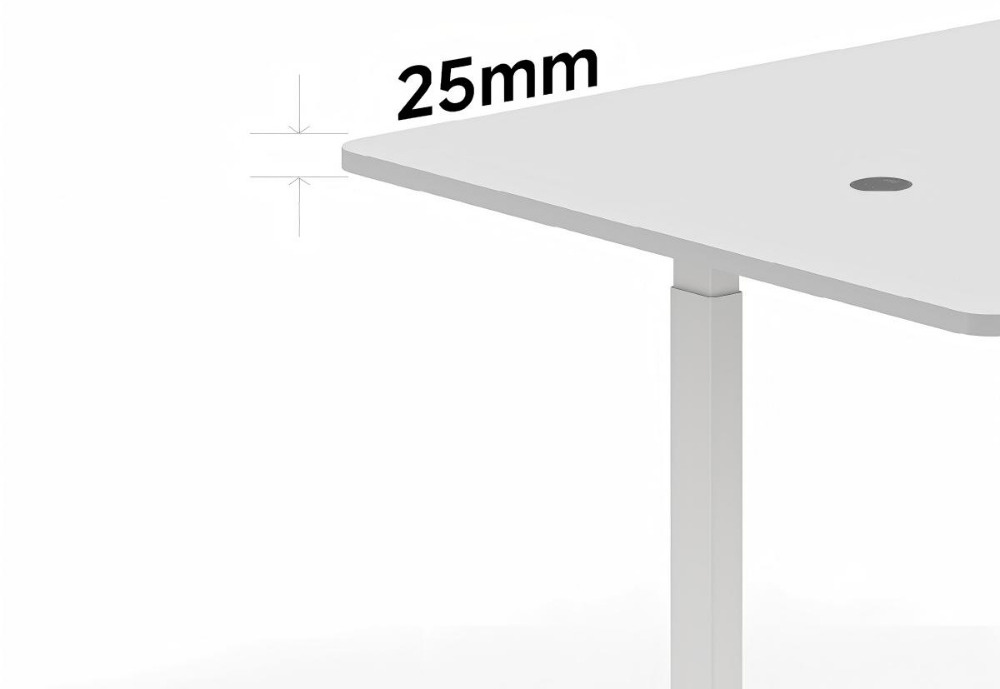

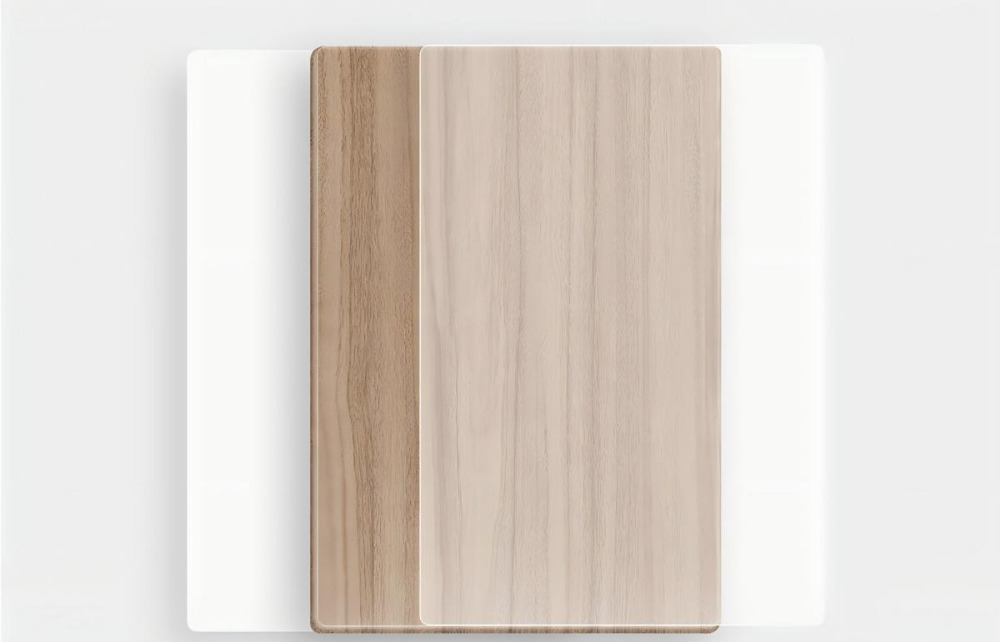

All tabletops adopt E0-grade 25mm thick MFC board, scratch, stain and wear resistant with zero formaldehyde emission, compliant with global commercial furniture environmental standards. The whole set combines rectangular desktop, sound-absorbing fabric partition and heavy-duty reinforced steel frame, partitions block sight and noise to build relatively private work zones inside open offices.

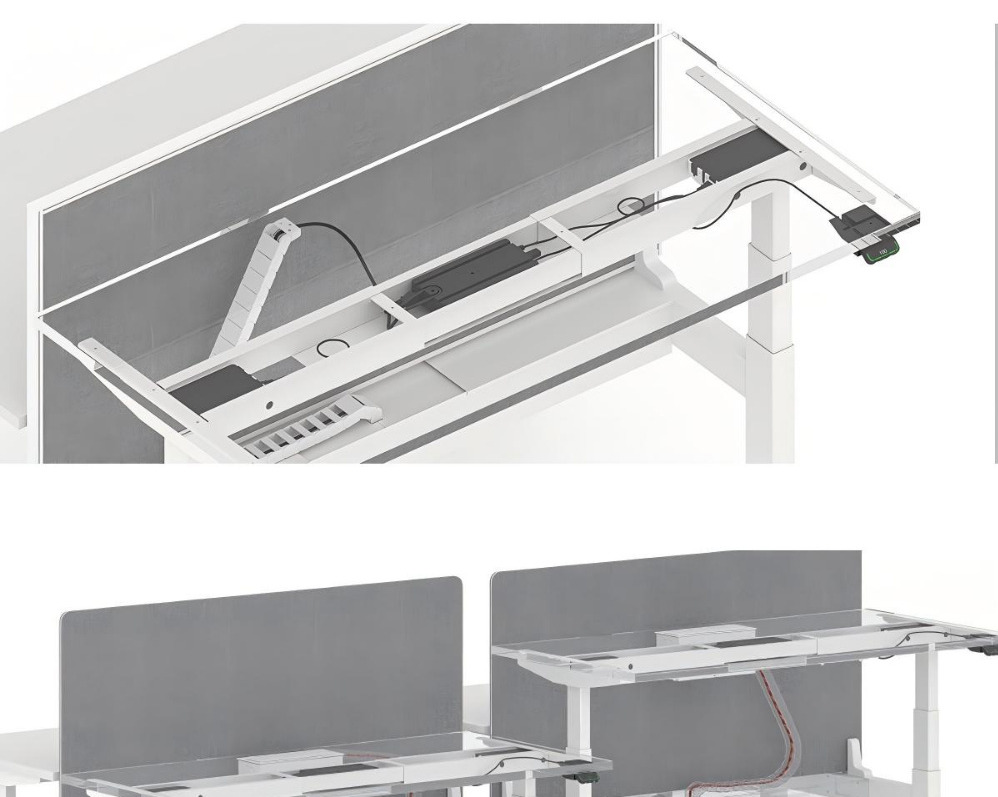

Complete dedicated cable management system for cross 4-seat layout: 2 sets fixed cable trough, 1 central 4-person cable riser and 4 cable drag chains. All motor and power wires are fully hidden to keep the whole workstation neat without messy exposed lines.
This workstation adopts genuine original LINAK lifting system, a century-old Danish brand winning Red Dot Design Award and German Innovation Award. The LINAK system has 10 core strengths: ultra-low failure synchronous lifting, sensitive anti-collision auto stop, DPG1C touch panel with digital height display, sitting-standing breathing light reminder, stable lifting under unbalanced load, only 0.1W standby power, self-locking columns to fix any height, easy assembly, healthy E0 desktop, all components passed third-party safety tests.

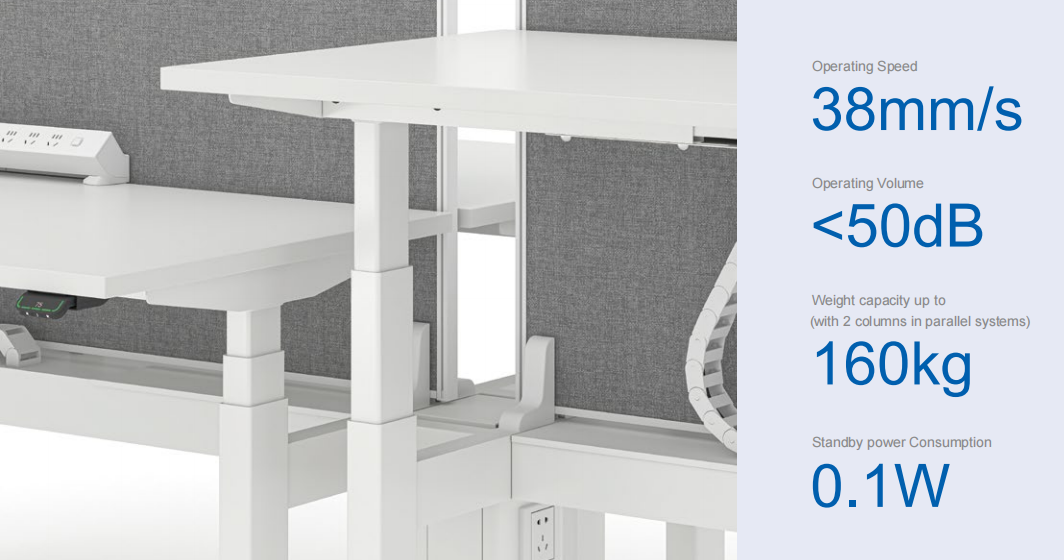

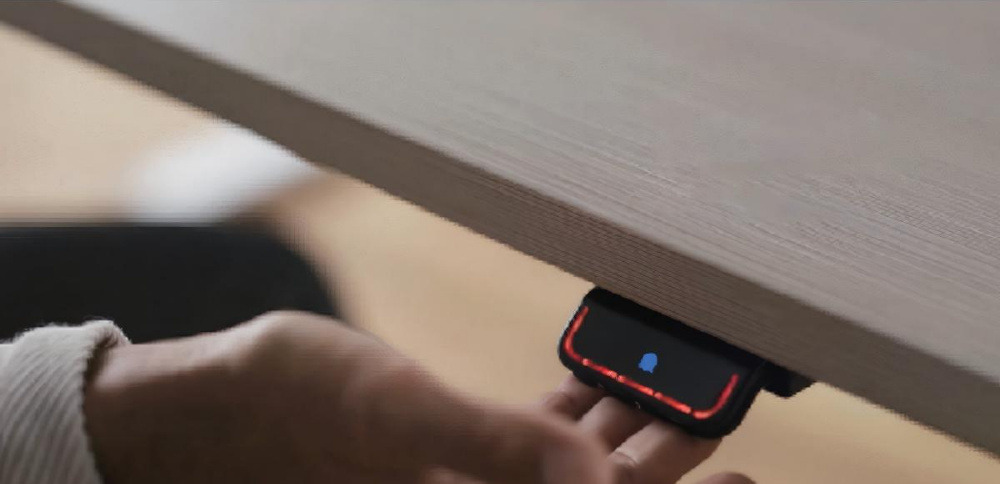

Each station is fitted with exclusive LINAK DPG1C intelligent controller, supporting 4 groups of height memory, real-time digital height, breathing posture reminder and Bluetooth usage statistics. Lifting speed reaches 38mm/s, operating noise below 50dB. Independent anti-collision sensor will stop lifting instantly when touching obstacles to protect table, equipment and ground.


Premium Structural & Functional Display




All FortuneRise cross L-shaped 4-seat workstations are fitted with full sets authentic LINAK DL6 welded lifting hardware, each station with independent control system to realize silent, stable separate height adjustment. Equipped with eco E0 MFC desktop, noise isolation fabric partition and centralized wire arrangement, this cross cubicle is premium ergonomic workspace for enterprise central team zones.



Standard Configuration & Technical Parameters


Parameter Item Detailed Specification
Surface Material E0-grade high-quality 25mm MFC board, scratch-resistant, wear-resistant, formaldehyde-free
Overall Structure Dual 1200*600 desktop per station forming L shape + fabric partition + reinforced all-steel frame, 4 independent cross work zones
Genuine LINAK Lifting System Dual-motor 3-stage DL6 welded columns: 12pcs DL6 columns, 4pcs CBD6S 3-channel control box, 8pcs 1m motor cables, 4pcs 2m motor cables, 4pcs 3m power cables, 4pcs DPG1C controller, 4pcs anti-collision sensor
Cable Management System 2 sets fixed cable trough + 1 central 4-person cable riser + 4 cable drag chain tubes
Lifting Height Range 630mm – 1280mm
Single Station Desktop Combination 1200W600 / 1200W600 double tabletops (L-shaped)
Overall Outer Dimension 2440W*2440D*630~1280H



Core Features

✅ Cross L-Shaped 4-Person Layout – Each seat with dual 1200*600 desktops for spacious L work surface, different from back-to-back straight cubicle
✅ 4 Independent LINAK DL6 Lifting Groups – 12 welded DL6 columns + 4pcs 3-channel CBD6S box, each station adjusts height independently
✅ Separate DPG1C Touch Controller For Every Seat – 4 height memory, digital display, breathing light reminder & Bluetooth data recording
✅ Sound-Absorbing Fabric Partition – Isolate visual distraction & office noise for private work zones
✅ Special 4-Seat Central Cable System – 2 fixed troughs + central riser + drag chains fully organize all internal wires
✅ Premium E0 25mm MFC Desktop – Formaldehyde-free eco panel for long daily office use
✅ Independent Anti-Collision Sensor Per Position – Auto stop during lifting to avoid collision damage
✅ Stable Heavy-Duty Steel Frame – Smooth synchronous lifting without shaking under daily office load
